list
contents
related file
- cpython/Objects/listobject.c
- cpython/Objects/clinic/listobject.c.h
- cpython/Include/listobject.h

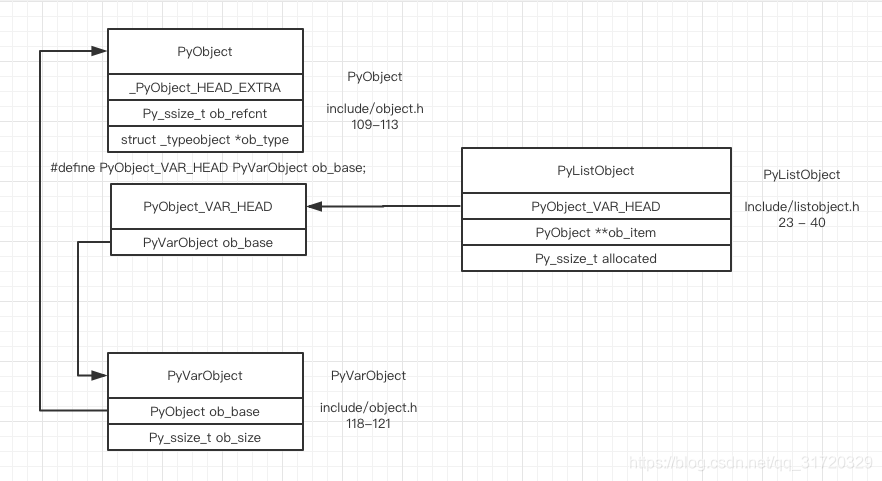

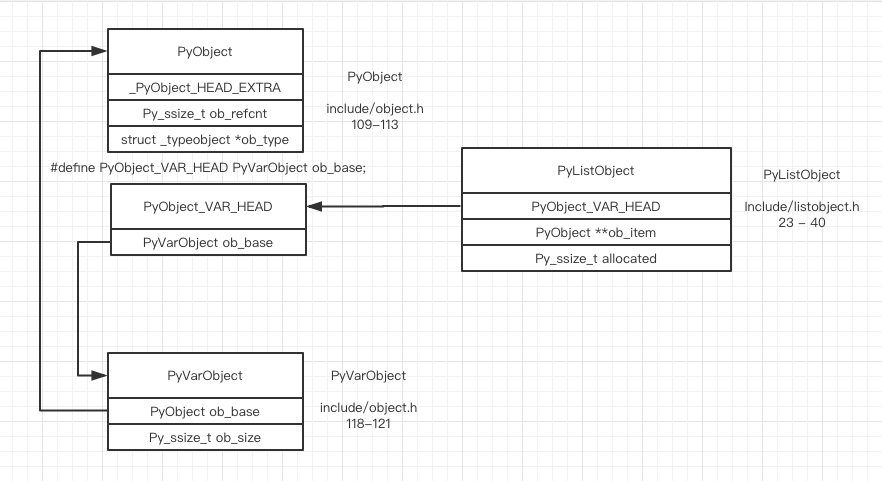

memory layout
append
the basic object’s name is list, but the actual implementation is more like a vector in C++
let’s initialize an empty list
l = list()
The field ob_size stores the actual size. Its type is Py_ssize_t which is usually 64 bits. 1 << 64 can represent a very large size; usually you will run out of RAM before overflowing the ob_size field
and append some elements into the list
l.append("a")
ob_size becomes 1, and ob_item will point to a newly malloced block with size 4
l.append("b")
l.append("c")
l.append("d")
now the list is full
if we append one more element
l.append("e")
this is the resize pattern
/* cpython/Objects/listobject.c */
/* The growth pattern is: 0, 4, 8, 16, 25, 35, 46, 58, 72, 88, ... */
/* currently: new_allocated = 5 + (5 >> 3) + 3 = 8 */
new_allocated = (size_t)newsize + (newsize >> 3) + (newsize < 9 ? 3 : 6);
you can see that it’s actually more like a C++ vector
pop
The append operation will only trigger the list’s resize when the list is full
What about pop?
>>> l.pop()
'e'
>>> l.pop()
'd'
The realloc is called and the malloced size is shrunk. Actually, the resize function will be called each time you call pop
But the actual realloc will be called only if the newsize falls lower than half the allocated size
/* cpython/Objects/listobject.c */
/* allocated: 8, newsize: 3, 8 >= 3 && (3 >= 4?), no */
if (allocated >= newsize && newsize >= (allocated >> 1)) {
/* Do not realloc if the newsize deos not fall
lower than half the allocated size */
assert(self->ob_item != NULL || newsize == 0);
/* only change the ob_size field */
Py_SIZE(self) = newsize;
return 0;
}
/* ... */
/* 3 + (3 >> 3) + 3 = 6 */
new_allocated = (size_t)newsize + (newsize >> 3) + (newsize < 9 ? 3 : 6);
sort
timsort
The algorithm CPython uses for sorting list is timsort. It’s quite complicated
>>> l = [5, 9, 17, 11, 10, 14, 2, 8, 12, 19, 4, 13, 3, 0, 16, 1, 6, 15, 18, 7]
>>> l.sort()
I’ve modified some parameter in source code for illustration, I will explain later
a structure named MergeState is created for helping the timsort algorithm
This is the state after preparing
Assume minrun is 5. We will see what minrun is and how minrun is calculated later. For now, we run the sort algorithm and ignore these details for illustration
binary_sort will be used for sorting a group of elements, the number of elements in a group is called run(minrun) here
after binary_sort the first group, nremaining becomes 15, count_run becomes 2, n of the MergeState becomes 1, because the pending is preallocated, the elements in pending is meaningless, n means how many elements in the pending array does mean something
after binary_sort the second group
the second group is sorted by binary_sort, and the next index of pending stores the information of the second group
We can learn from the above graph that pending acts as a stack. Every time a group is sorted, the group info will be pushed onto this stack, and a function named merge_collapse will be called after the push operation
/* cpython/Objects/listobject.c */
/* Examine the stack of runs waiting to be merged, merging adjacent runs
* until the stack invariants are re-established:
*
* 1. len[-3] > len[-2] + len[-1]
* 2. len[-2] > len[-1]
*/
static int
merge_collapse(MergeState *ms)
{
struct s_slice *p = ms->pending;
assert(ms);
while (ms->n > 1) {
Py_ssize_t n = ms->n - 2;
if ((n > 0 && p[n-1].len <= p[n].len + p[n+1].len) ||
/* case 1:
pending[0]: [---------------------------]
pending[1]: [-----------------------] (n)
pending[2]: [-----------------------]
... (ms->n)
len(pending[0]) <= len(pending[1]) + len(pending[2])
*/
(n > 1 && p[n-2].len <= p[n-1].len + p[n].len)) {
/* case 2:
...
pending[3]: [-----------------------------------------------------------------]
pending[4]: [-----------------------------------------------------------------]
pending[5]: [-----------------------] (n)
pending[6]: [-----------------------]
pending[7]: [-----------------------] (ms->n)
len(pending[3]) <= len(pending[4]) + len(pending[5])
*/
if (p[n-1].len < p[n+1].len)
/* pending[0]: [-----------------] (new_n)
pending[1]: [-----------------------] (n)
pending[2]: [-----------------------]
*/
--n;
if (merge_at(ms, n) < 0)
return -1;
}
else if (p[n].len <= p[n+1].len) {
/* case 3:
pending[0]: [--------------] (n)
pending[1]: [--------------]
*/
if (merge_at(ms, n) < 0)
return -1;
}
else
break;
}
return 0;
}
The current state is case 3. merge_at will merge the two runs at stack indices i and i+1
merge_at
merge_at is the combination of merge_sort and galloping mode
After merge_collapse, the first two runs are merged and the valid length of pending becomes 1
after binary_sort the next run
The merge_collapse won’t merge any of the runs because the stack invariants are satisfied
after binary_sort the final run
It meets case 1, and the last two runs will be merged first
in the while loop of merge_collapse, merge will happen again in case 3, after this merge, we’ve finished our timsort algorithm and all the ob_item in list are sorted
galloping mode
If we are merging these two arrays
We can use binary search to find the max element that is smaller than the first element in the right, and copy these elements together instead of merging one by one
We can also do that from right to left
read more detail in listsort.txt
binary_sort
Before delegating the call to binary_sort, a function named count_run will be called first to calculate the longest increasing or descending subarray beginning at index 0
so that binary_sort can sort the range begin at index 2, and end at index 4
The subarray before start is sorted, and we need to sort all the remaining elements from start to the end
First we set a variable pivot’s value to start’s value, then perform binary search in the left subarray to find the first element that is greater than pivot
do {
p = l + ((r - l) >> 1);
IFLT(pivot, *p)
r = p;
else
l = p+1;
} while (l < r);
Then we move every element from l to start forward, and set the element at start to pivot
We perform binary search again. This time the element at index 2 is selected, and we move every element from the selected index to start forward again
And set the value at the selected element’s index to pivot
We need to perform the final binary search
The selected element is at index 2. After moving every element from l to start forward
And set the element at start to pivot, we’ve finished the binary_sort algorithm
run
Actually minrun will be computed in the following function. If the current run number is lower than 64, it will be sorted with binary_sort directly. Otherwise, half of its size will be shrunk until there’s a result size lower than 64
I’ve changed this constant to a smaller value so that the example above can fit into my graph
static Py_ssize_t
merge_compute_minrun(Py_ssize_t n)
{
Py_ssize_t r = 0; /* becomes 1 if any 1 bits are shifted off */
assert(n >= 0);
while (n >= 64) {
r |= n & 1;
n >>= 1;
}
return n + r;
}
time complexity
time complexity of timsort
free_list
#ifndef PyList_MAXFREELIST
#define PyList_MAXFREELIST 80
#endif
static PyListObject *free_list[PyList_MAXFREELIST];
static int numfree = 0;
There exists a per-process global variable named free_list
If we create a new list object, the memory request is delegated to CPython’s memory management system
a = list()
del a
The destructor of the list type will store the current list in free_list (if free_list is not full)
Next time you create a new list object, free_list will be checked for available objects you can use directly. If available, allocate from free_list; if not, allocate from CPython’s memory management system
b = list()
Caching list objects in free_list can
- improve performance
- reduce memory fragmentation
